SA ON/OFF
Note: The test location is not ideal,
having medium tree cover and the west blocked by the house
(The first two plots say "SA Off", but actually SA was ON at those
times)

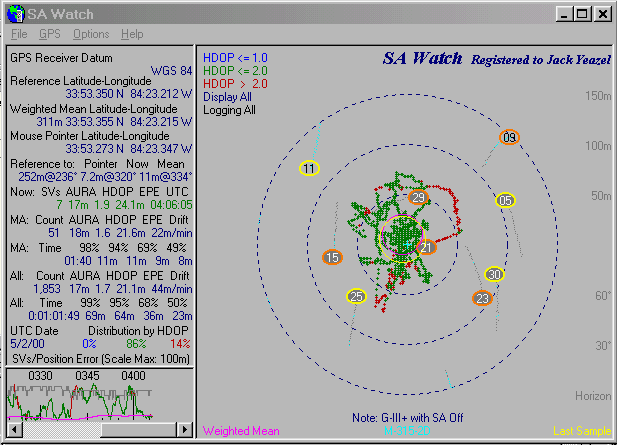

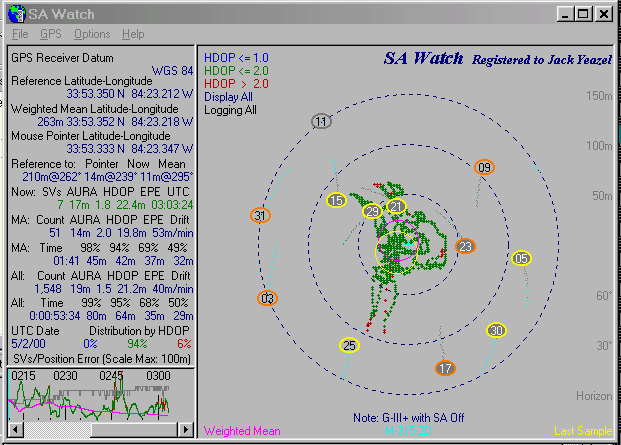

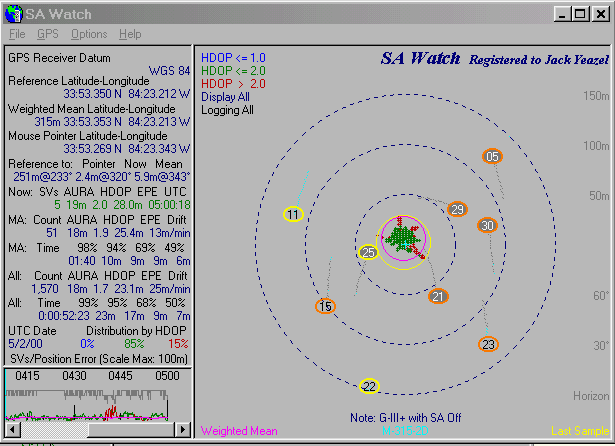

Plots by SA
Watch
One-hour recording ending at 11:00pm EDT
One-hour recording ending at 12:00am EDT
One-hour recording ending at 1:00am EDT

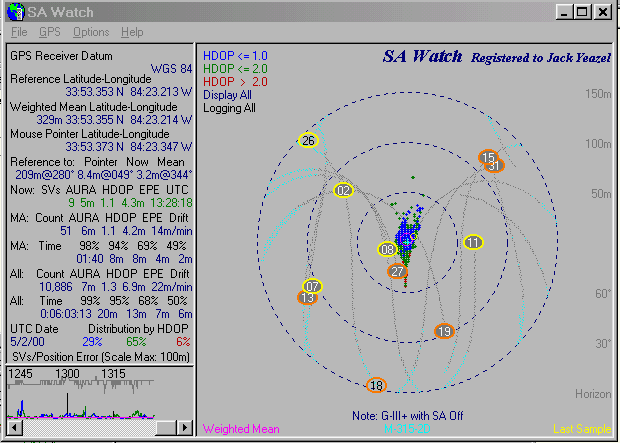

Six-hour recording ending at 9:30am EDT
NOTES: This last recording was made with a roof-mounted active antanna
The weighted mean was 3.2m@344° from reference point, and the 95%
error scatter was 13m

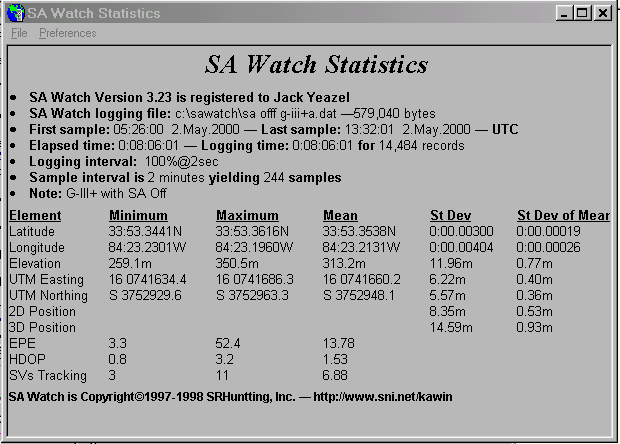

Statistics

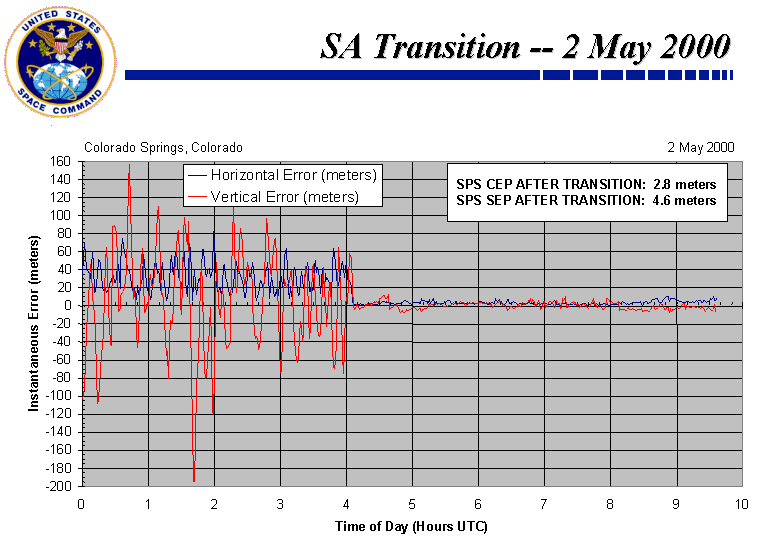

Check
here to see a running graph of horizontal and vertical errors and their
sudden removal at 12:00 am EDT
