12KW Sunland
Chinese two cylinder Diesel Generator Photos
Generator manufactured by Mindong DADI Generator Company
Right click on photo and select VIEW IMAGE to see larger image.
Views shown with rainproof cover removed.
Click here to>GO
TO MAIN PRODUCT REVIEW PAGE

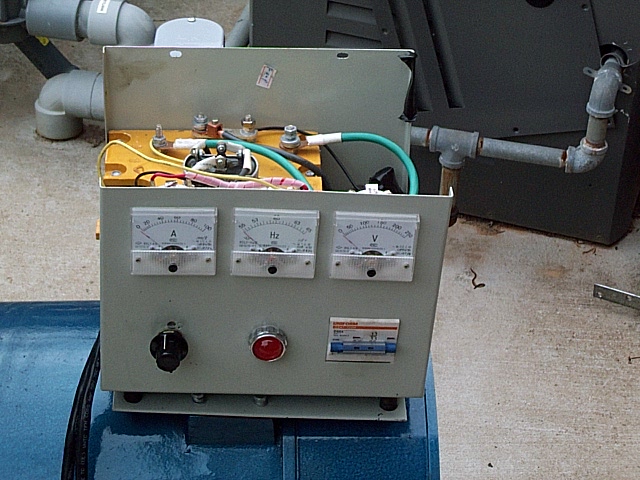

Generator Control
panel showing Ammeter,
Freq Meter, Voltmeter, Voltage control,
Output Lamp and 50 Amp Breaker

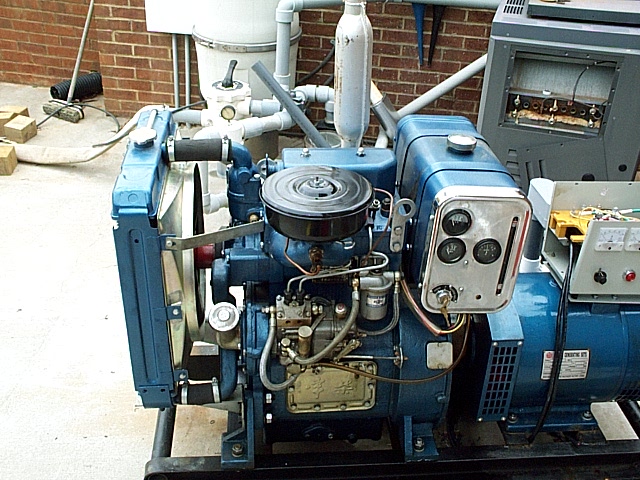

Two Cyl Diesel, Water Cooled, showing
engine control panel with Ammeter, Oil Press,
Engine Temperature, Fuel level tube, and
Ignition Switch

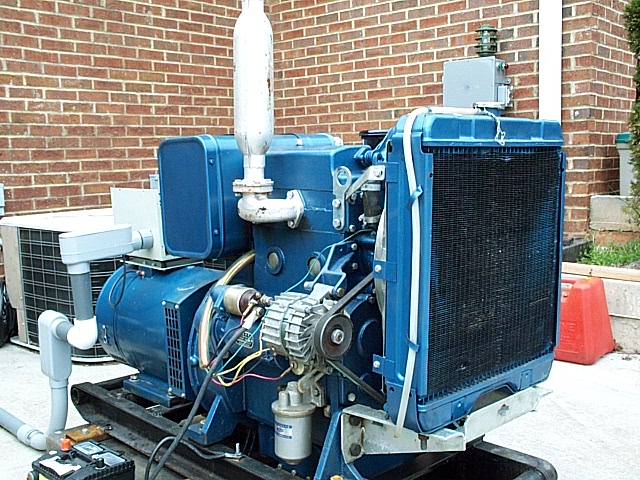

Engine view showing alternator, oil filter, and
exhaust.
Generator Junction Box showing meters,
bridge rectifier and on lower level, Current
Transformer for output ammeter

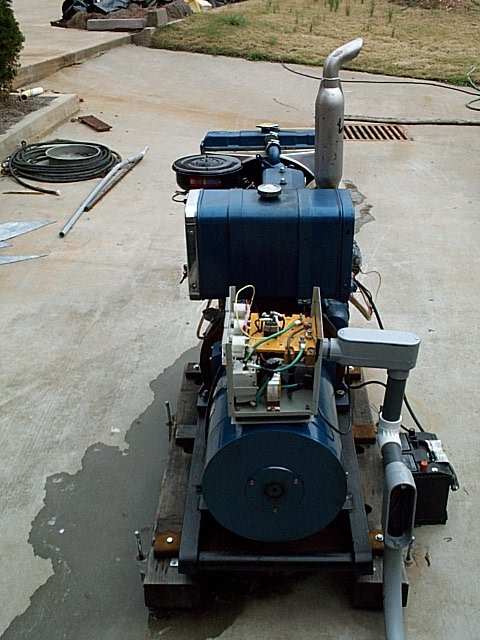

View of Generator unit's Skid Mount.

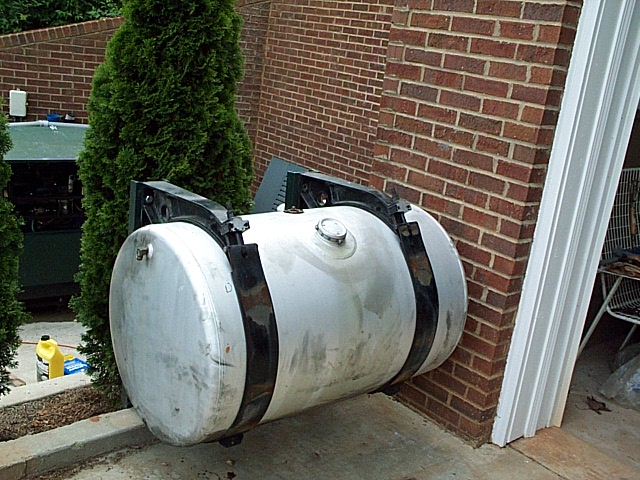

100 gallon Diesel Fuel tank with generator in it's
green rainproof housing visible through the trees.

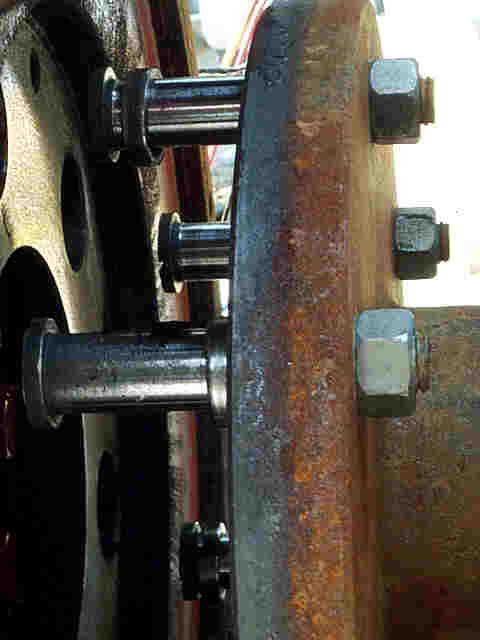

View of failed engine flywheel to generator shaft coupling showing
that the
rubber bushings on the pin-and-bushing connections have totally
disintegrated.
